Description

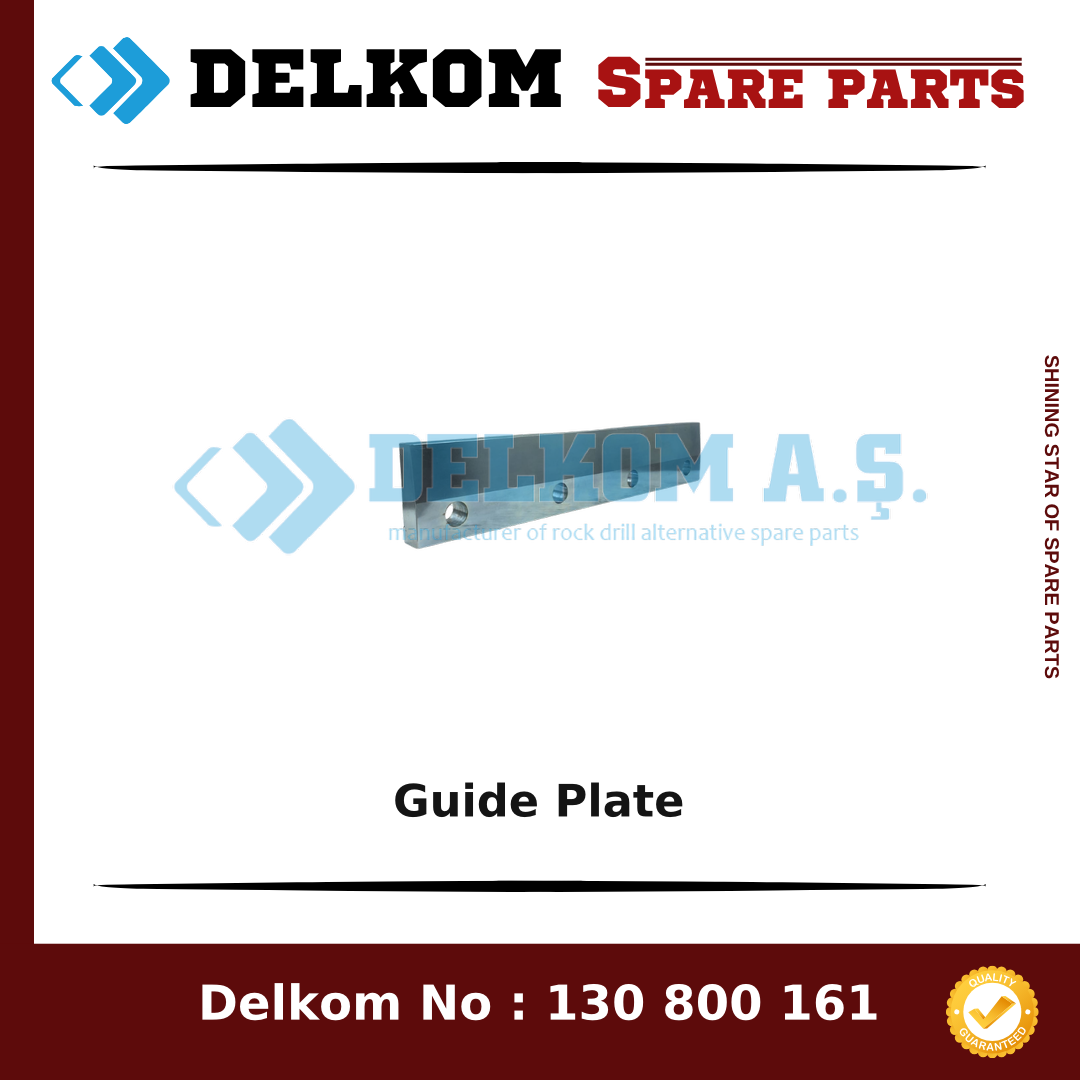

Built for dependable performance in heavy-duty drilling applications, the Guide Plate (OEM 083204-03021) is intended for maintenance of compatible Furukawa drill rigs, drifters and support systems. Its primary role is to support, guides, clamps or positions connected machine components so the mechanism can move and carry load as intended. Typical listed applications include HCR 1200, HCR 1200-ED and HCR 1200-EW.

The component is built to handle mechanical loading, vibration, repeated positioning and harsh field conditions. The use of robust structural material with accurately formed mounting and contact points supports consistent fit at the relevant interfaces and reliable operation after replacement. In practical maintenance terms, this helps maintain alignment, secure positioning and dependable movement throughout the operating cycle.

This aftermarket component is supported by Delkom’s experience in replacement parts for drill rigs and drifters. For purchasing, compatibility review or technical assistance, refer to Delkom code 130 800 161.
